Casa /Prodotti/generatore del motore diesel/electric generator 220V 5kW JM6700T diesel (211112018-01)

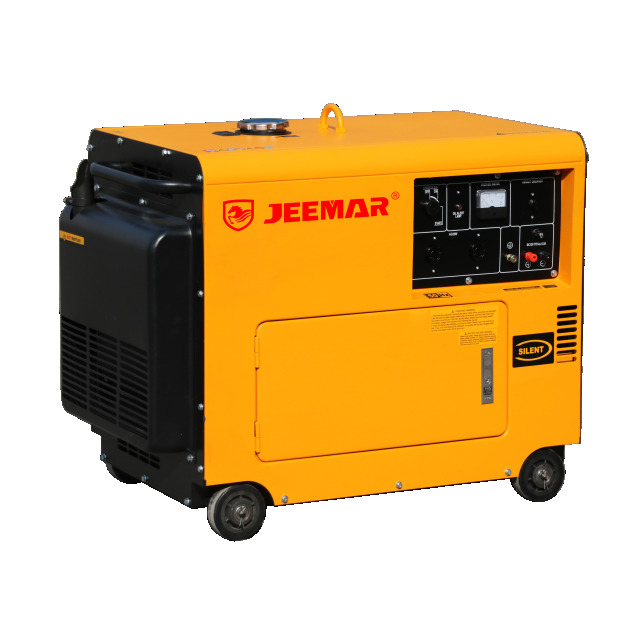

electric generator 220V 5kW JM6700T diesel (211112018-01)

12 pieces
MOQ
$566.00(>=12 pieces)
prezzo
electric generator 220V 5kW JM6700T diesel (211112018-01)
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 3months-1year
Certificazione: CE
Model Number: JM6700T(211112018-01)
Rated Voltage: 220V
Rated Current: 20.45A
Speed: 3000 RPM
Frequency: 50Hz
Weight: 150kg
Engine Model: JM186FAE
Starting system: Electric Start
Engine Brand: JEEMAR
Alternator brand: KETE or SENCI
Color: Optional
Informazioni di base
Certificazione: CE
Model Number: JM6700T(211112018-01), JM186FAE
Termini di pagamento e spedizione
Packaging Details: Carton with plastic film
Supply Ability: 800 Piece/Pieces per Day
Descrizione di prodotto
Products Description
Model No
JM6700T(211112018-01)
Rated Frequency
(Hz)
50/60
Rated Power
(kVA)
4.5/5.0
Max Power
(kVA)
5.0/5.5
Rated Voltage
(V)
115/230 ;120/240
Rated Current
(A)
39.1/19.6 ;41.7/20.8
Rated Speed
(rpm)
3000/3600
Pole No.
2
Phase Number
Single phase
Excitation Mode
Self-excitation and constant voltage(with AVR)
Power Factor
1
Insulation Grade
F
Engine Model No
186FAE
Engine Type
Single cylinder, in-lined, 4-stroke, air cooled, direct-injected
Bore × Stroke
(mm)
86x72
Displacement
(cc)
418
Compression Ratio
19.5:1
Rated Power
(kW)
5.7/ 6.3
Lubrication System
Pressure splashed
Lube Oil Brand
CD Grade Above or SAE 10W-30,SAE15W-40
Lube Oil Capacity
(L)
1.65
Starting System
12V Electric system
Starting Motor Capacity
(V-KW)
12V 0.8KW
Charging Generator Capacity
(V-A)
12V 3A
Battery Capacity
(V-Ah)
12V 30~36Ah
Fuel Consumption Ratio
(g/kW.h)
275.1/ 281.5
Fuel Type
0#(summer),-10#(winter),-20#(chilliness ) diesel
Fuel Tank Capacity
(L)
15
Nosie level(7m）
dB(A)
72
Packing Size(L×W×H)
(mm)
940×560×760
Gross Weight
(kg)
150
Loading Quantity
(20”/40”)
72/150
Recommend Products
Company Profile
JEEMAR POWER CO.,LTD. professional produces and sells：diesel engine; diesel water pump; diesel generator; diesel generator &welder ect. We already passed the CE certification and make this certification standard to every details of management. Innovation-oriented and keeping pace with the times, makes sure the product structure with diversified and high technology. “People oriented with integrity” is our management concept.Development on the basis of brand, All the staffs in our company are engaged in putting brand strategy into practice and increasing market share of "JEEMAR". The products are well received in MIDEAST, AFRICA, SOUTHEAST ASIA, SOUTH AMERICA. We are, as always, adhere to the cooperation and win-win idea, professional concentration attitude to offer high-quality products and services to global markets.
Our Advantages

Customer Centric

We put our customers at the center of our focus and initiatives with the objective of providing them with unmatchable level of service and products.

Respect

We believe that all individuals can and want to contribute to their fullest potential. We treat everyone with dignity and respect.

Respect

Innovation is the cornerstone of our success. We place great value on technology innovations. We challenge convention and reinvent the way we do business to better win in the marketplace.
Certifications
Exhibition
Packing &Transport
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory.
2. Q : How is the quality of the machine?
A : Our well-equipped facilities and excellent quality control throughout all stages of production. Before deliver the machine, we also do the test to ensure the machines good running and performance, please don't worry.
3. Q : Whats the payment method?
A : We support T/T,L/C payment method.
4. Q:What is your terms of packing?
A:export standard carton package..
5.Q:How about guarantee?
A: It's within 1year after goods is discharged in the destination.
